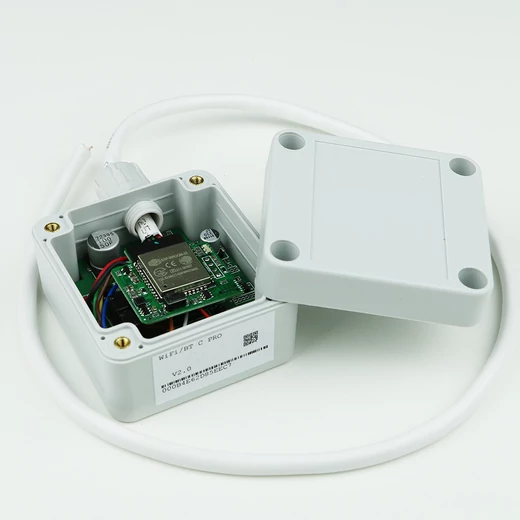

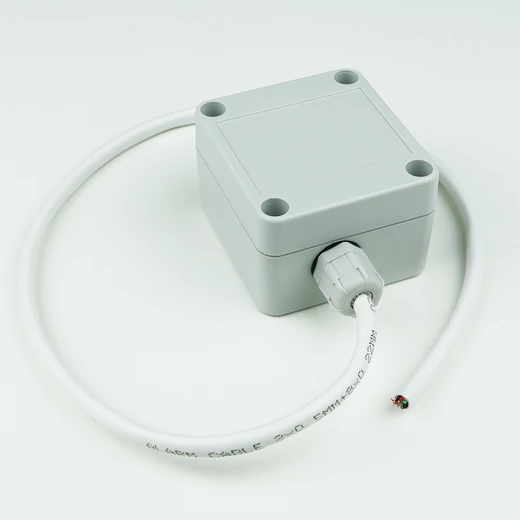

WiFi/Bluetooth Controller Pro - 2 in- and 2 outputs controller

We designed the Wifi/Bluetooth Controller Pro for controlling electric gates, garage doors, and barriers. However, the device can be used to control other devices too that have an input that allows control or simply just by switching the power source of a certain device (an external relay can be necessary)

The parameters of the WiFi module can be configurated with the Cloud Manager application in a few steps.

The software creates an icon in the application. By tapping this icon we can control the output.

We can create two types of control icons. We determine the type of the control icon while configuring its settings. The type of the icon can be either controlled via Bluetooth or via Wifi.

We can manage multiple WiFi/Bluetooth Controller Pro with one smartphone

The control time of the relay outputs can be 1-65535 seconds (bistable control will be available soon).

The data for internet connection can be given in the smartphone application. Howbeit, PC is not necessary to configure the module.

After proper configuration, the module can be managed both via Bluetooth and Wifi. It is not needed to set the configuration channel of each user. The control icon determines the communication channel.

The Bluetooth 4.2 protocol allows connecting to the module at a 15-20 distance. The Wifi ensures unlimited distance. (to be able to control the output, internet access is needed on the smartphone that can be mobile internet or Wifi).

As a security function (adjustable), the device allows controlling only if the smartphone and the controller are connected on the same Wifi network.

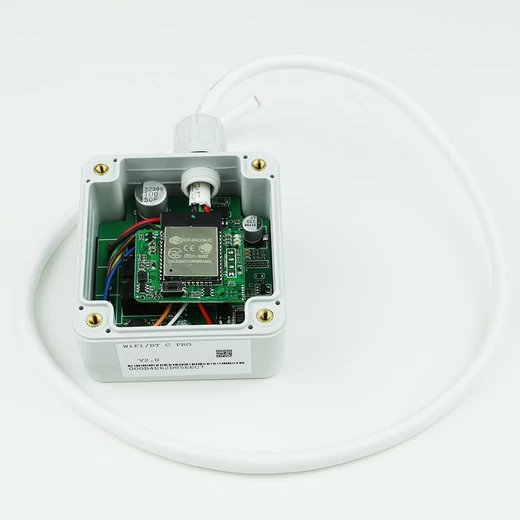

For security reasons, the module is visible for 10 minutes as a Bluetooth device after restarting or launching. We can make the module visible by pushing down the micro-switch at the top of it, or on the web interface.

The module gives notifications in the push and/or email messages to inform us about the control and connection etc.

The WiFi/Bluetooth Controller Pro is available on a web server as well. After signing into the website, the following functions can be reached:

• setting and modifying output control time
• creating and deleting new users, disabling control permissions
• querying the Wifi network signal statistics that shows the stability of the network
• disabling control permission of certain users
• in the event log, we can see when and which customer activated the output
• we can query the output counter that provides information about how many times the output has been controlled
• we can query the operating hours of the module
• we can create a control link that allows us to control the output of the module with PC
• In the statistics we can see how many times the module has been launched or restarted, the number of push messages, server connections, etc.
• we can switch on the Bluetooth visibility to be able to create a new Bluetooth connection with a new phone
• disabling Wifi network

Application areas:

• Control: gate-, barrier- and garage door opening
• Home automation (air conditioner, heating system, sauna, lighting, etc.)
• Door opening, access control
• Handling permissions
• Arming / Disarming alarm center
