How to connect the EasyLine GSM to the Paradox Spectra panel?

12/02/2018 12:00:00 AM

We made an easy and fast installation video that introduces the whole installational process of the EasyLine GSM in a few minutes. We use all of the functions of the EasyLine including the line simulation, notification sending and the remote arming/disarming.

Scroll down on our website to watch the video:

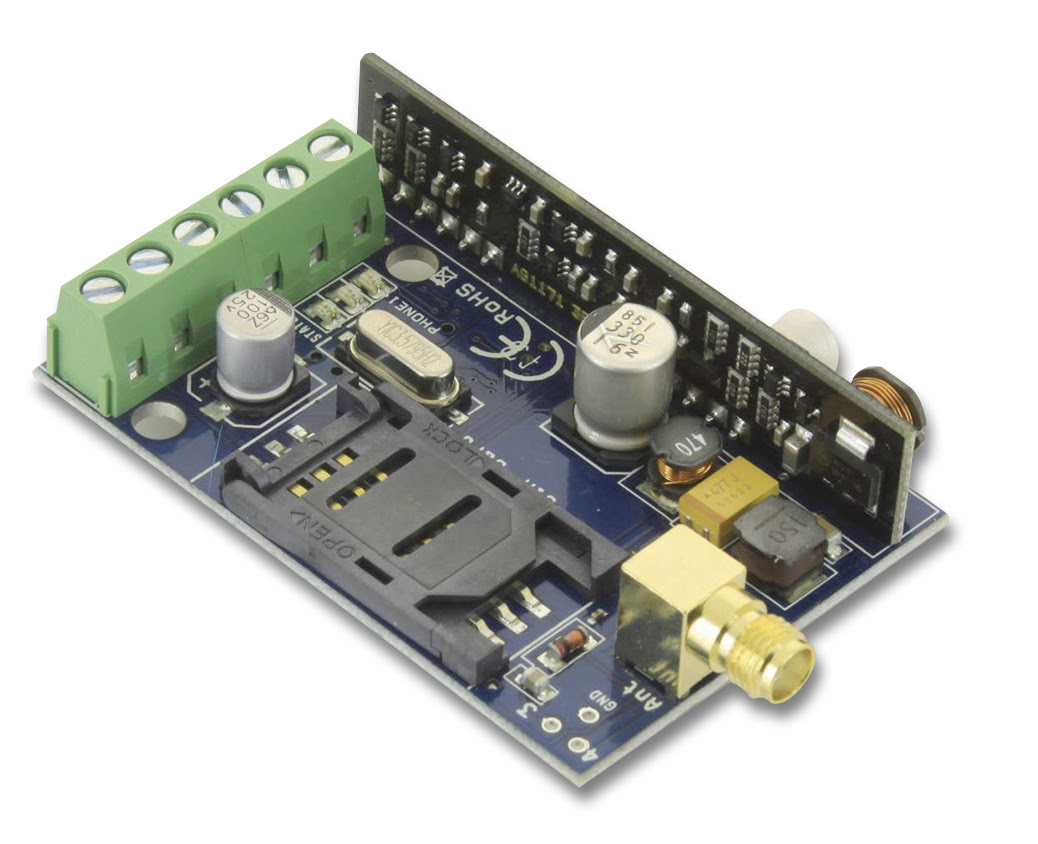

The EasyLine GSM is a linesimulator that can be programmed and installed easily even without programming as well. The communicator provides the following functions:

Trough the TIP RING connector:

  • Sending Contact ID to the monitoring station via voice call
  • Notifying the user and playing the stored voice message in the alarm center
  • Providing 47 V simulated line to the alarm center with 72 V ringing voltage

SMS input:

  • Sending SMS message to the user in case of alarm (Blackout, Battery failure, General alarm)

With the OUTPUT :

  • We can arm and disarm the alarm center by using the stored phone numbers on the SIM card

Due to the Plug&Play usage, the EasyLine GSM can be used immediately after we disable the PIN code and the voice mail service. The alarm center can be programmed and reached via the EasyLine GSM.

To whom we suggest the EasyLine?

The EasyLine is an ideal solution to anybody who would like to send notification either, to the monitoring station, or to send SMS to end-users to a pre-defined number (power failure, alarm etc.) Also, it is an excellent solution to anybody, who would like to arm or disarm the alarm center with the output of the EasyLine.

You can find further information about the EasyLine on our website: http://tellsystem.co.uk/products/easyline gsm/

Download the manual from here: EasyLine GSM manual
