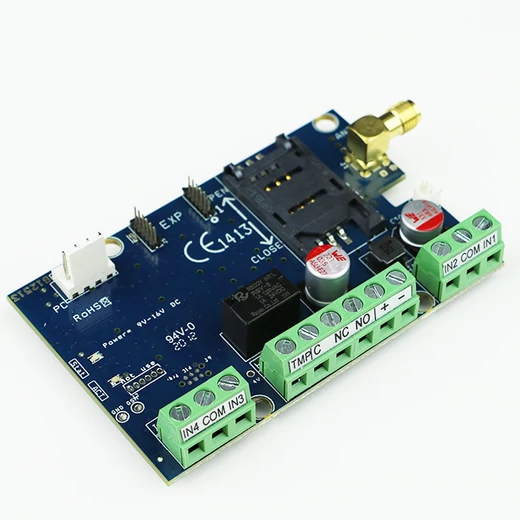

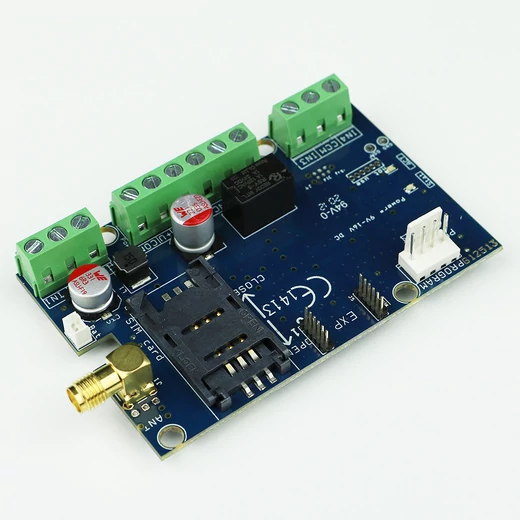

ProCon GSM Cloud - GSM transceiver and remote control with 5 inputs and 1 relay output
Description
The ProCon GSM can send notifications to 8 phone numbers in SMS and/or voice message. The notification sending can be triggered by a signal arriving at any of the 5 inputs, by power failure, sabotage, or by arming/disarming of the GSM. A unique SMS message can be set about the alarm event.
The dial time, the number of dials as well as the circular are configurable separately.
Output control can be made from unlimited phone numbers with a free call. When controlling with caller identification numbers can be stored in the memory of the module (1,000 in this case), or on the SIM card inserted. The output can be monostable (up to 65000 sec.) or bistable.
As a standalone GSM alarm center, the inputs work like zones, a siren can be activated by the output. In addition, the module can be armed/disarmed by free call. The tamper input on the module can be used as a sabotage indicator with setting possibilities alike to inputs.
Shortening it before powering on and then cut short in 3 seconds functions as a ’’reset’’ that can revert the module back to its original factory state. The ProBattery allows to monitor the power outage, and it provides enough power to the module for 24 hours.
The ProCon GSM can be programmed by SMS, Cloud, Android (Bluetooth, GPRS), or by PC (USB, Bluetooth, WIFI) with the ProRead software.
The GSM module can monitor and log the GSM signal stregth every hour, which can be visualized on a diagram. The module can store up to 16,000 events in which appear states of the inputs and outputs, power supply resets, GSM network and module state-related information, incoming and outgoing calls, and SMSs.
SIM functions: forwarding incoming SMSs to a predefined phone number, warning message regarding the expiration of the SIM card validated. Expansion possibility: Relay output panel (EXPrelay), or GSM alarm center panel (EXPAlarm), etc..
Application areas:
- GSM/GPRS transmission for alarm centers
- It can be used as a standalone GSM alarm center
- Control: Gate, barrier, and garage door opening
- Home automation (air conditioner, heating system, sauna, lighting)
- Monitoring supply voltage (230V) along with sending notification
- Monitoring and restarting servers
Product features
| Inputs (+ expander): | 5 (+1) |
| Relayed Outputs (+ expander): | 1 (+3) |
| Relayed output load: | max. 30V@500mA |
| OC outputs (+ expander): |
 (+1)
|
| OC output load: | max. 30V@400mA |
| User phone numbers for sending notifications: | 8 |
| User phone numbers for output control: | Unlimited / 1000 phone number |
| Independent signal sending to monitoring center: |
|
|
User phone numbers for forwarding incoming SMSs: |
/1
|
| Transmission channel: | GSM/GPRS/EDGE/WCDMA/HSPA |
| Caller identification: |
|
| Alarm center function (arm/disarm, entry/exit delay) |
|
| Selectable 24h zones: |
|
| Adjustable input sensitivity: |
|
| Configurable inputs (NO/NC): |
|
| Independent SMS sending to user phone numbers with customized text: |
|
| Monitoring station phone numbers: | 2 |
| Periodic test report sending: |
|
|
Sending recorded voice messages to user phone numbers: |
/6(+1)
|
| Sending alarm to user phone number with a siren sound: |
|
| Inbuilt internal clock: |
|
| Event list/number of stored events: | 16 000 |
| GSM signal strength monitoring and logging hourly |
|
|
Translation of Contact ID codes into SMS along with sending it to user phone numbers (Distinguishing 250 events and 250 zones) |
|
| Configurable own Contact ID codes: |
|
| Telephone line simulation: |
|
| PSTN phone line monitoring: |
|
|
Output activation with free GSM call: |
|
| Security SMS password: |
|
| Programming software(PC, Android): |
|
| Programming method: | USB / SMS / Bluetooth / Cloud |
| Battery connection options: |
|
| Power drain (standby/transmitting over GSM): | 30mA/700mA |
| Simulated line/transmitting over GSM: |
|
| Power voltage: | 9-24 VDC |
Parameters
| Power voltage | 9-24 VDC |
| Standby current | 30 mA |
| Maximalcurrent | 700 mA |
| Relayed output | max. 30V@500mA |
| GSM module type | SIM5300EA |
| GSM frequencies | WCDMA/HSPA 900/2100 Mhz GSM/GPRS/EDGE 900/1800 Mhz |
| SIM card usage | unlocked GSM module |
| GSM antenna type | SMA connector (the package contains) |
| Size | 78 x 51 x 20 mm, Package:132 x 128 x 32 mm |
| Operating temperature | -20°C – +50°C |
